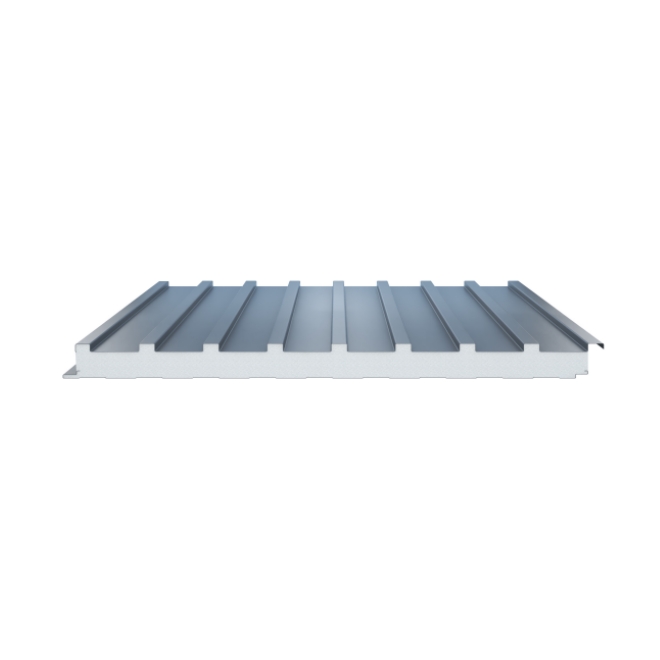

Crafted with a durable aluminum alloy exterior and a high-performance PU/ PIR core, these panels deliver exceptional heat insulation. Their distinctive linear design, inspired by the iconic Great Wall, provides a visually striking and robust solution for projects demanding both superior aesthetic appeal and structural integrity.

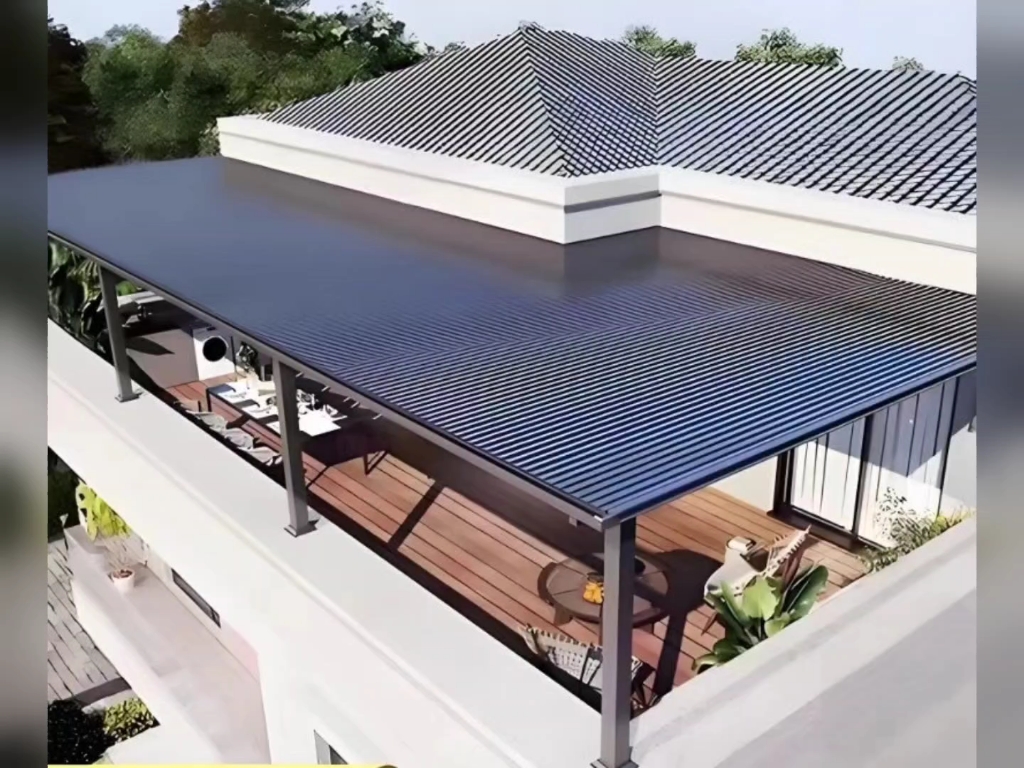

The aluminum great wall panels are ideal for roofs and walls in outdoor pavilions, sunrooms, and canopies, offering effective heat insulation, waterproofing, and sun protection.
Product Highlights
1. Premium Aluminum & Durable Finish
High-grade aluminum alloy construction with oxidation and baked-on paint treatment provides exceptional durability, corrosion resistance, and long-lasting color integrity.
2. Superior Thermal & Acoustic Insulation

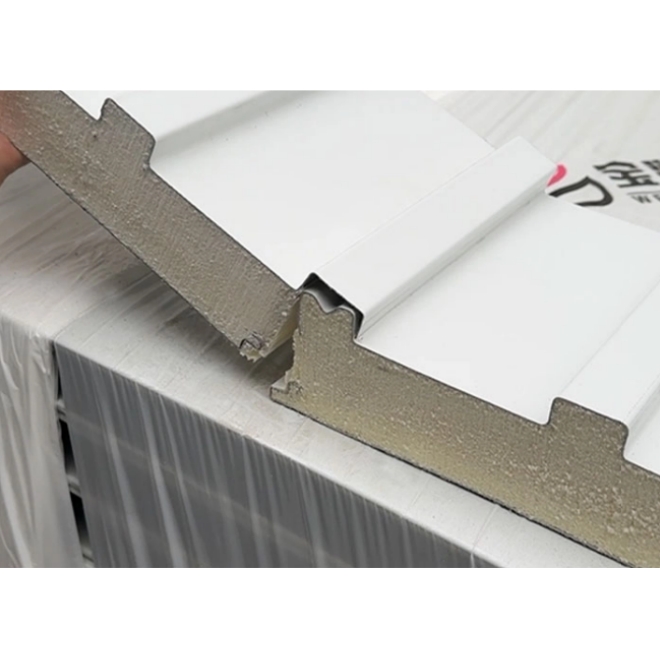

PU/PIR core delivers excellent thermal and acoustic insulation, ensuring year-round comfort and energy efficiency.
3. Enhanced Weather & Fire Resistance
Waterproof, moisture-proof, and fire-resistant properties ensure reliable protection against the elements and high temperatures.
4. Customizable & Long-Lasting Aesthetics
Available in a wide range of customizable colors, these panels maintain their vibrant appearance and structural integrity for extended lifespans.
Product Parameters
| Metal Sheet | Aluminum plate, steel plate, aluminum magnesium manganese plate |
| Sheet Thickness | 0.35-0.7mm |
Core Densit | 40~42kg/m³ |
| Compressive Strength | >140kpa |

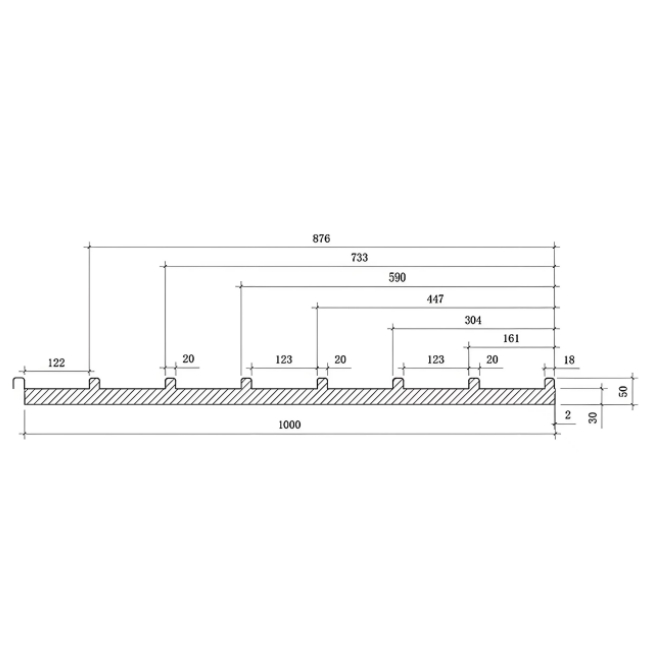

Effective Width | 1000mm, 950mm |
Core Thickness | 50mm(customize) |
| Thermal Conductivity | PIR<0.023w/m.k, PUR:0.22-0.26w/m.k |
| Color Selection | Metallic gray, metallic dark curry, imitation wood grain, etc. (customize) |
| Water Absorption(v/v ) | <3% |
Recommended Coatings | Fluorocarbon, polymer coating, spraying, roll coating, powder |
Installation | Snap-fit and screw fixing |
