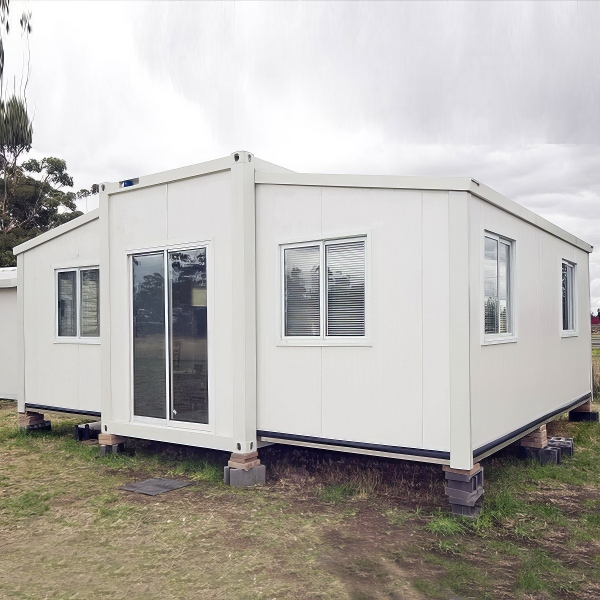

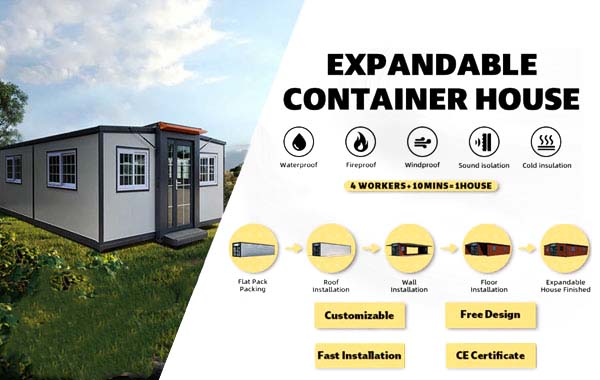

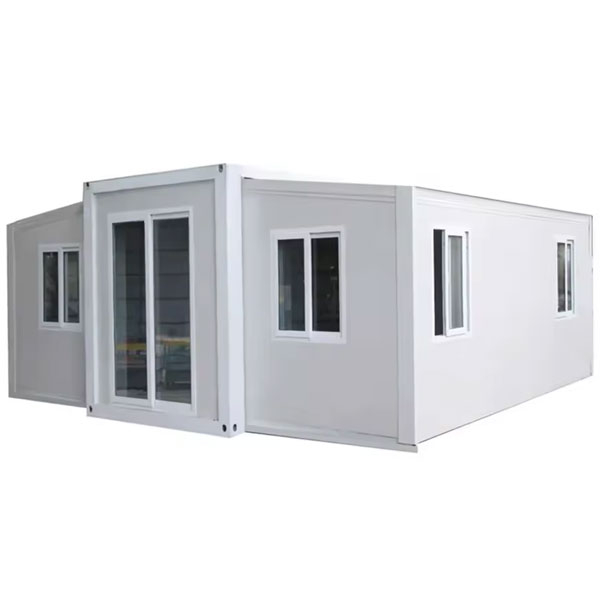

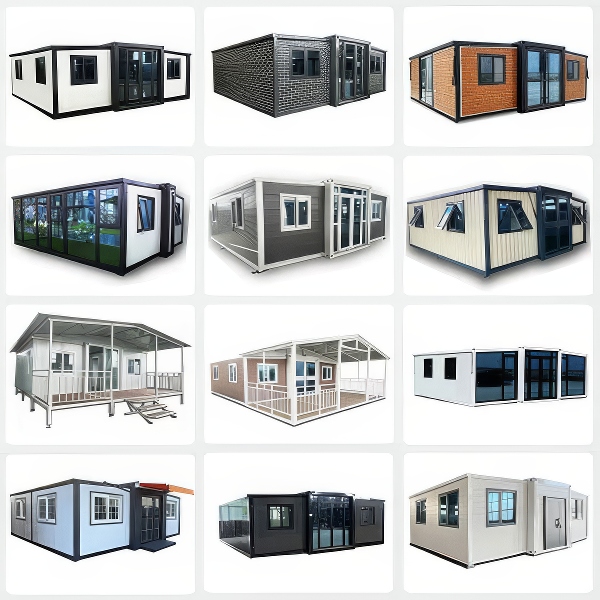

An expandable container house is a modular, prefabricated unit that’s easy to transport and quick to set up. It folds into a standard shipping container for delivery and expands on-site to create a spacious interior. Ideal for temporary housing, permanent living, or office use, it’s a fast, cost-effective, and flexible space solution.
Minimal waste, reusable, and no construction debris.
| Size | 20ft | 40ft |
| External Dimension (mm) | L6300*W5900* H2480 | L6200*W11800*H2480 |
| Internal Dimension(mm) | L6140*W5640*H2260 | L6200*W11360*H2260 |

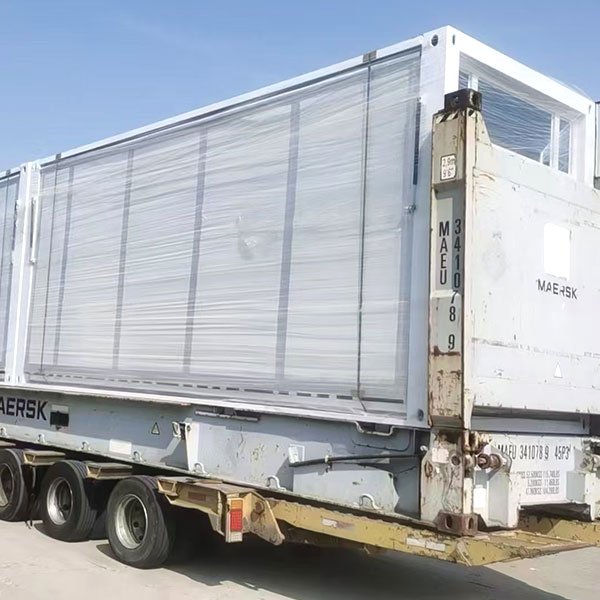

| Folded(mm) | 2200*W5900*H2480 | L2200*W11800*H2480 |
| Structure | Light Steel Structure | |
| Main Material | Galvanized steel structure with sandwich panel wall and doors, windows, etc. | |
| Service Life | 30-40years | |
| Color | White, Charcoal or according to customer's requirement. | |

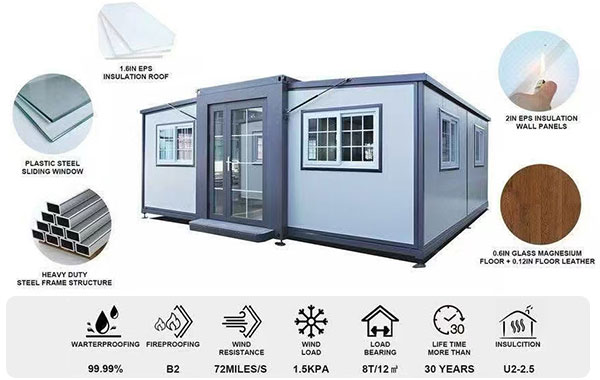

| Steel Structure | 3mm Hot galvanized steel structure with 4 corner casts and 18mm fiber cement board; 1.8mm PVC flooring; 50mm rock woll, EPS or PU sandwich panel; Galvanized steel base plate. | |
| Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and 50mm -70mm EPS or PU sandwich panel; Galvanized steel roof covering. | |
| Columns | 3mm Hot galvanized steel structure | |
| Wall | 50/75/100mm EPS/Rock woll/PU sandwich panel | |
| Door | Made of steel/aluminum frame, Broken bridge aluminum.Dimension W1930mm*2100mm glazed with double glass in a thickness of 5/8/5mm. Can be customized according to demand. | |
| Window | Made of PVC/aluminum fame,Broken bridge aluminum.Dimension W1125mm*H1100mm, glazed with double glass in a thickness of 5/8/5mm. Dimension W800*H1100mm, glazed with double glass in a thickness of 5/8/5mm. | |
| Connection Kits | PVC connection kits for floor, ceiling, walls. | |
| Electricity | 3C/ CE / CL / SAA Standard, with distribution box, lights, switch, sockets, etc. | |
| Optional Accessory | A/C, office, dormitory, Toilet, kitchen, bathroom, shower, steel roof, electrical appliance for accomodation, cadding panels, decorative material, furniture, sanitary, kitchen,etc. | |

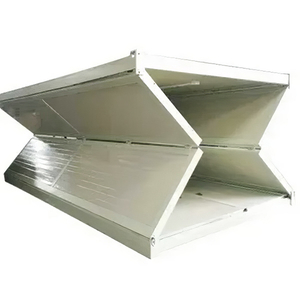

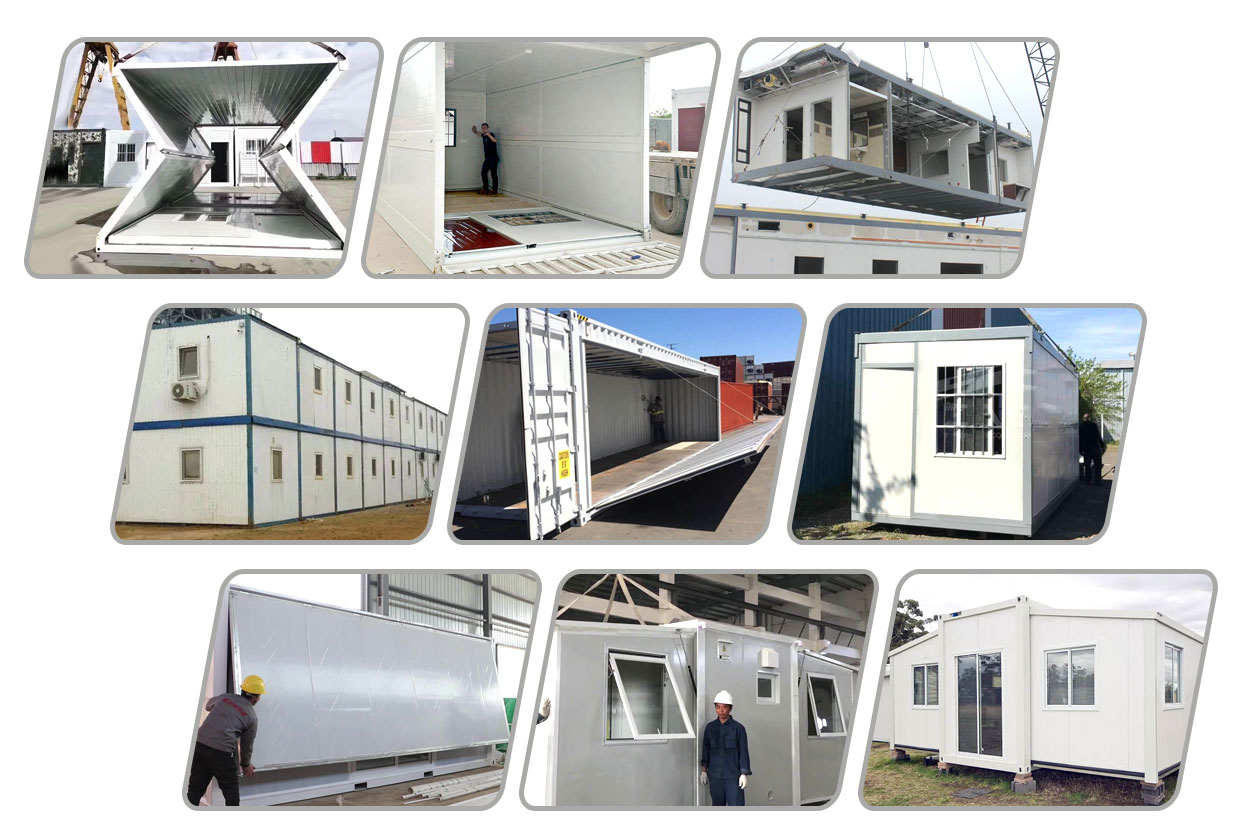

Folding container houses provide a practical answer for numerous temporary needs. These prefabricated units, characterized by their foldable steel construction and insulated walls, are engineered for easy transport and quick assembly. This makes them highly suitable for establishing temporary offices, providing secure worker housing, deploying emergency disaster shelters, or creating functional mobile work camps.
