BRD

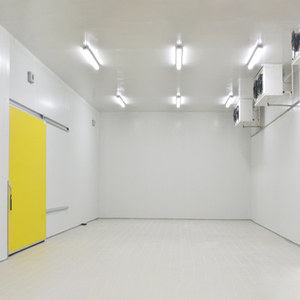

BRD cold rooms provide strong cooling for a variety of cold room sizes that cover applications ranging from medical lab storage rooms, food processing centers, walk-in coolers to drive-in distribution centers and others, which offer a wide range of solutions to preserve freshness, ensure safety and enhance the appearance of food and beverage retail.

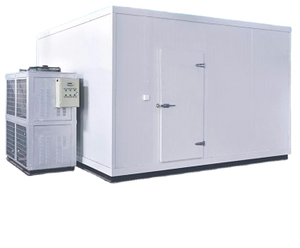

 | BRD cold room consists of cold room panel (PU sandwich panel), cold room door, condensing unit, evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings. |
Temperature Table For Reference:
| Project | Temperature | Panel thickness |
| Processing room | 10℃ | 50mm |
| Fruit, vegetable, dry food | 0℃~-5℃ | 50mm |
| Medicine, cake, pastry, chemical material | 0℃~-5℃ | 75mm |
| Ice storage room | 5℃~-10℃ | 75mm |
| Fish, meat storage | -18℃~-25℃ | 150mm |
| Deep freezer | -25℃~-35℃ | 2000mm |
BRD Cold Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece, like cold storage, cool room ,freezer, refrigerating workshop construction.
 | Panel Thickness | 50, 75, 100, 125, 150, 200mm |
| Standard Facings | Steel sheet coated with polyester paint, 25µm Hign Zinc sheet with Zn 50 – Zn 180g Stainless steel | |
| Core Material Density | 40 [kg/m³] ±2kg/m³ | |
| Thermal Conductivity | 0.022 [W/mK] | |
| Acoustic Insulation | 30 [dB] | |
| Standard Length | 2m-12m | |
| Effective width | 500-1150mm | |
| Fire resistance | Non-flammable |
Application scenarios
BRD cold room systems are designed for usage within temperature controlled and hygiene safe environments such as, food processing, deep freeze, cold,chill store and cold storage for meat, food and other industries.
★Cool Rooms ★Freezers Rooms ★Dual Temperature Rooms ★Laboratories cold rooms | ★Proven rooms ★Cold Storage Facilities ★Warm rooms |
Features
▲Energy saving
▲Thermal insulation
▲Design flexibility
▲Aesthetically pleasing
▲Meets health industry regulations
BRD cold rooms provide strong cooling for a variety of cold room sizes that cover applications ranging from medical lab storage rooms, food processing centers, walk-in coolers to drive-in distribution centers and others, which offer a wide range of solutions to preserve freshness, ensure safety and enhance the appearance of food and beverage retail.
| | BRD cold room consists of cold room panel (PU sandwich panel), cold room door, condensing unit, evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings. |
Temperature Table For Reference:
| Project | Temperature | Panel thickness |
| Processing room | 10℃ | 50mm |
| Fruit, vegetable, dry food | 0℃~-5℃ | 50mm |
| Medicine, cake, pastry, chemical material | 0℃~-5℃ | 75mm |
| Ice storage room | 5℃~-10℃ | 75mm |
| Fish, meat storage | -18℃~-25℃ | 150mm |
| Deep freezer | -25℃~-35℃ | 2000mm |
BRD Cold Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece, like cold storage, cool room ,freezer, refrigerating workshop construction.
| Panel Thickness | 50, 75, 100, 125, 150, 200mm |
| Standard Facings | Steel sheet coated with polyester paint, 25µm Hign Zinc sheet with Zn 50 – Zn 180g Stainless steel | |
| Core Material Density | 40 [kg/m³] ±2kg/m³ | |
| Thermal Conductivity | 0.022 [W/mK] | |
| Acoustic Insulation | 30 [dB] | |
| Standard Length | 2m-12m | |
| Effective width | 500-1150mm | |
| Fire resistance | Non-flammable |
Application scenarios
BRD cold room systems are designed for usage within temperature controlled and hygiene safe environments such as, food processing, deep freeze, cold,chill store and cold storage for meat, food and other industries.
★Cool Rooms ★Freezers Rooms ★Dual Temperature Rooms ★Laboratories cold rooms | ★Proven rooms ★Cold Storage Facilities ★Warm rooms |
Features
▲Energy saving
▲Thermal insulation
▲Design flexibility
▲Aesthetically pleasing
▲Meets health industry regulations
