Cam Lock Cold Room
BRD

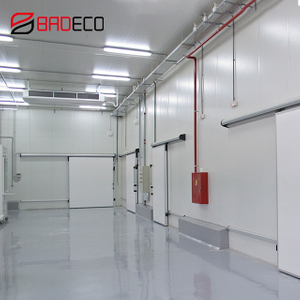

BRD cold rooms provide strong cooling for a variety of cold room sizes that cover applications ranging from medical lab storage rooms, food processing centers, walk-in coolers to drive-in distribution centers and others, which offer a wide range of solutions to preserve freshness, ensure safety and enhance the appearance of food and beverage retail.
Cold Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece, like cold storage, cool room ,freezer, refrigerating workshop construction.
 | Panel Thickness | 50, 75, 100, 125, 150, 200mm |
| Standard Facings | Steel sheet coated with polyester paint, 25µm Hign Zinc sheet with Zn 50 – Zn 180g Stainless steel | |
| Core Material Density | 40 [kg/m³] ±2kg/m³ | |
| Thermal Conductivity | 0.022 [W/mK] | |
| Acoustic Insulation | 30 [dB] | |
| Standard Length | 2m-12m | |
| Effective width | 500-1150mm | |
| Fire resistance | Non-flammable |
Temperature Table For Reference:
| Project | Temperature | Panel thickness |
| Processing room | 10℃ | 50mm |
| Fruit, vegetable, dry food | 0℃~-5℃ | 50mm |
| Medicine, cake, pastry, chemical material | 0℃~-5℃ | 75mm |
| Ice storage room | 5℃~-10℃ | 75mm |
| Fish, meat storage | -18℃~-25℃ | 150mm |
| Deep freezer | -25℃~-35℃ | 200mm |
Features
▲Energy saving
▲Thermal insulation
▲Design flexibility
▲Aesthetically pleasing
▲Meets health industry regulations
Application scenarios
●Meat-processing enterprise ●Dairy enterprise ●Food processing enterprise ●Edible fungus breeding center ●Cold chain storage ●Seed storage room | ●Commercial supermarket chain store ●Medical laboratory ●Wholesale market of agricultural products ●Biological medicine storage ●Chain restaurant ●Synthetic logistics center |
Our cold room systems are designed for usage within temperature controlled and hygiene safe environments such as, food processing, deep freeze, cold,chill store and cold storage for meat, food and other industries.
BRD cold rooms provide strong cooling for a variety of cold room sizes that cover applications ranging from medical lab storage rooms, food processing centers, walk-in coolers to drive-in distribution centers and others, which offer a wide range of solutions to preserve freshness, ensure safety and enhance the appearance of food and beverage retail.
Cold Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece, like cold storage, cool room ,freezer, refrigerating workshop construction.
| Panel Thickness | 50, 75, 100, 125, 150, 200mm |
| Standard Facings | Steel sheet coated with polyester paint, 25µm Hign Zinc sheet with Zn 50 – Zn 180g Stainless steel | |
| Core Material Density | 40 [kg/m³] ±2kg/m³ | |
| Thermal Conductivity | 0.022 [W/mK] | |
| Acoustic Insulation | 30 [dB] | |
| Standard Length | 2m-12m | |
| Effective width | 500-1150mm | |
| Fire resistance | Non-flammable |
Temperature Table For Reference:
| Project | Temperature | Panel thickness |
| Processing room | 10℃ | 50mm |
| Fruit, vegetable, dry food | 0℃~-5℃ | 50mm |
| Medicine, cake, pastry, chemical material | 0℃~-5℃ | 75mm |
| Ice storage room | 5℃~-10℃ | 75mm |
| Fish, meat storage | -18℃~-25℃ | 150mm |
| Deep freezer | -25℃~-35℃ | 200mm |
Features
▲Energy saving
▲Thermal insulation
▲Design flexibility
▲Aesthetically pleasing
▲Meets health industry regulations
Application scenarios
●Meat-processing enterprise ●Dairy enterprise ●Food processing enterprise ●Edible fungus breeding center ●Cold chain storage ●Seed storage room | ●Commercial supermarket chain store ●Medical laboratory ●Wholesale market of agricultural products ●Biological medicine storage ●Chain restaurant ●Synthetic logistics center |
Our cold room systems are designed for usage within temperature controlled and hygiene safe environments such as, food processing, deep freeze, cold,chill store and cold storage for meat, food and other industries.
