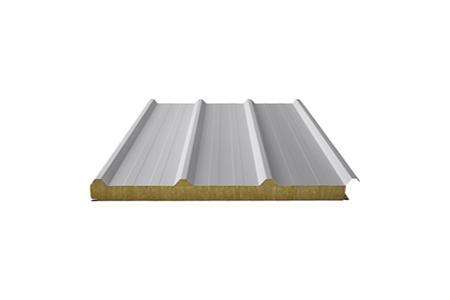

Fireproof Rock Mineral Wool Sandwich Roof Panel

Mineral Wool = High Fire Resistance/Insulation/Soundproof/High Strenth

The mineral wool insulating core has high fire resistance and excellent sound insulation. Sandwich roof panels with a mineral wool insulation core offer high fire resistance and thermal insulation properties.

 ▲Mineral wool insulation core

 ▲High fire resistance

 ▲Vertical or horizontal installation

 ▲Standard lengths are from 2 m to 10 m (max. 12 m)

 ▲Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

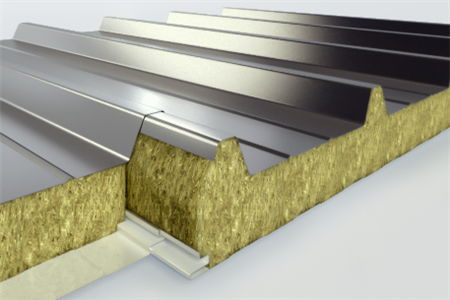

Mineral Wool Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density Mineral Wool. Thanks to their properties the panels may be applied in object that require very high fire resistance, mineral wool sandwich panel is the most effective acoustic materials used on construction.

Take the 50mm thick mineral wool sandwich panel for example and the panel can absorb the sound over 30db/m2. Widely used in the steel structure factory building, activities room, roof, air clean room ceiling and partition.

SPECIFICATIONS

MINERAL WOOL SANDWICH PANEL are applied as roof of building, installed vertically or horizontally on single- or multi-span structure.

★Industrial Buildings

★Store Houses And Logistic Centres

★Commercial Buildings And Offices

★Food Industry Facilities

★Agricultural Objects

★Sport Halls

INSTALLATION VIDEO

1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.

2, Before the installation of mineral wool roof panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.

3, It should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and roof frame beam connection with self tapping screw fixation.

4, Mineral wool roof panel links with ground.

Store Dedicated technical support is available throught the building cycle, pre- and manufacture.

Contact us for complimentary services including:

U Value/ Condensation risk calculation, bespoke construction detail, advice on fire & accoustic performance, panel spans, fastener & roof drainage calculations, optimised lighting designs, building energy modelling & Installation Training.
