Rock Mineral Wool = high fire resistance
The rock mineral wool insulating core has high fire resistance and excellent sound insulation. Wall sandwich panels with a mineral wool insulation core offer high fire resistance and thermal insulation properties.
High fire resistance
Vertical or horizontal installation
Standard lengths are from 2 m to 10 m (max. 12 m)
Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

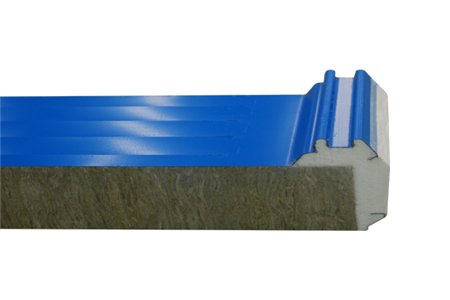

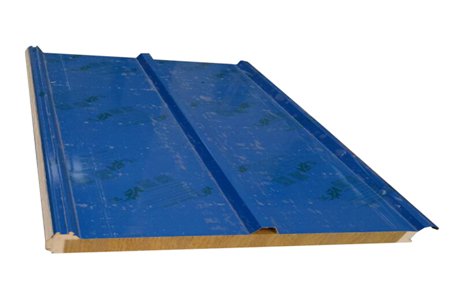

Rock Mineral Wool Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density Rock Mineral Wool (Mineral Wool). Thanks to their properties the panels may be applied in object that require very high fire resistance, rockwool sandwich panel is the most effective acoustic materials used on construction.
50mm, 75mm, 100mm
steel sheet coated with polyester paint, 25µm
Hign Zinc sheet with Zn 50 – Zn 180g
Core material [kg/m³]
Thermal Conductivity [W/mK]
Acoustic Insulation [dB]
Standard Length [m]
Effective width [mm]
ROCK MINERAL WOOL SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.
Store houses and logistic centres
Commercial buildings and offices
Food industry facilities
Dedicated technical support is available throught the building cycle, pre- and manufacture.
Contact us for complimentary services including: U Value/ Condensation risk calculation, bespoke construction detail, advice on fire & accoustic performance, panel spans, fastener & roof drainage calculations, optimised lighting designs, building energy modelling & Installation Training.
