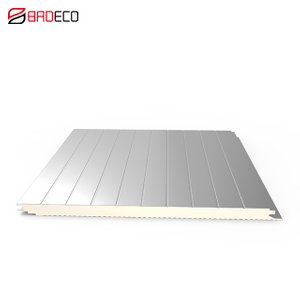

PUF Sandwich Panel

BRDECO Insulated panels generally consist of two outer metal sheets (steel or aluminum) with an insulation core sandwiched between them. The metal sheets are bonded to the insulation core with specialized adhesives. As the product is pre-fabricated in the factory, sandwich panels have been used successfully employed in various fast track construction projects.
Color:
Availability:
Quantity:

COLOR OPTIONS

The popular color as bellow for basic choice, or any other required on RAL Color

FLAME RED
G7016

GENTIAN BLUE
G5010

SILVER
G9006

WHITE GREY
G9002

PURE WHITE
G9010



LIGHT IVORY
G1015

TRAFFIC WHITE
G9016

YELLOW GREEN
G6018

SLIVER GREY
G7016




CHARACTERISTICS

PU (Polyurethane) = Good Heat Insulation

PU Sandwich Panels with polyuret with polyurethane foam cores meet the strictest heat insulation requirements, while also complying with the required insulation properties and maintaining a good bearing capacity.


 Rock wool insulation core

 High fire resistance

 Vertical or horizontal installation

 Standard lengths are from 2 m to 10 m (max. 12 m)

 Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

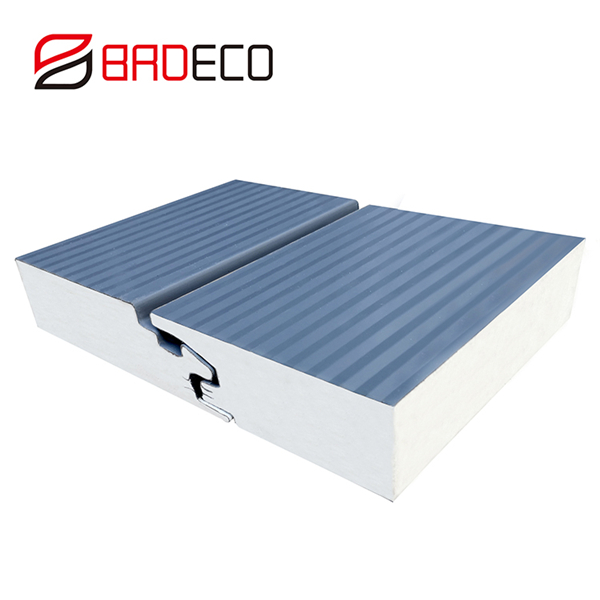

BRD-Sandwich-Panel


DESCRIPCTION


sandwich-panel-BRD


PU Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density POLYURETAHE foam. Thanks to their properties the panels may be applied in object that require very high fire resistance, PU sandwich panel is the most effective acoustic materials used on construction.


Take the PU sandwich panel for example and the panel can absorb the sound over 30 db/m2.Widely used in the steel structure factory building, activities room, roof, wall, air clean room ceiling and partition.


SPECIFICATIONS


Panel Thickness

40mm, 50mm, 75mm, 100mm

Standard Facings

Steel  sheet coated with polyester paint, 25µm

Hign  Zinc sheet with Zn 50 – Zn 180g

Stainless steel

Core Material Density

40 [kg/m³]

Thermal Conductivity

0.022 [W/mK]

Acoustic Insulation

30 [dB]

Standard Length

2m-12m

Effective width

1000mm

Fire resistance

Non-flammable

APPLICATION

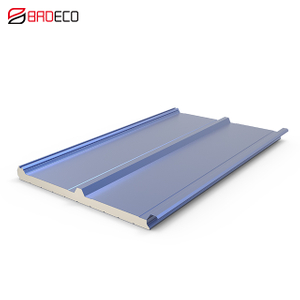

BRD-PU sandiwch panel


PU SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.

Industrial buildings.

Steel frame structure buildings

Store houses and logistic centres

Commercial buildings and offices

Food industry facilities

Fire Rated Buildings

Agricultural objects

Sport halls

Logistics centers


INSTALLATION VIDEO


sandwich-panel-installation-BRDECO_副本


SYSTEM ACCESSORIES

Store Dedicated technical support is available throught the building cycle, pre- and manufacture.


Contact us for complimentary services including:

U Value/ Condensation risk calculation, bespoke construction detail, advice on fire & accoustic performance, panel spans, fastener & roof drainage calculations, optimised lighting designs, building energy modelling & Installation Training.


Sandwich panel accessories-BRDECO.png
