The popular color as bellow for basic choice, or any other required on RAL Color
The popular color as bellow for basic choice, or any other required on RAL Color
EPS = Good Heat Insulation
EPS Sandwich Wall Panel with EPS foam cores meet the strictest heat insulation requirements, while also complying with the required insulation properties and maintaining a good bearing capacity.
▲EPS insulation core
▲Sound Insulation
▲Vertical or horizontal installation
▲Standard lengths are from 2 m to 10 m (max. 12 m)
▲Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm
EPS = Good Heat Insulation
EPS Sandwich Wall Panel with EPS foam cores meet the strictest heat insulation requirements, while also complying with the required insulation properties and maintaining a good bearing capacity.
▲EPS insulation core
▲Sound Insulation
▲Vertical or horizontal installation
▲Standard lengths are from 2 m to 10 m (max. 12 m)
▲Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

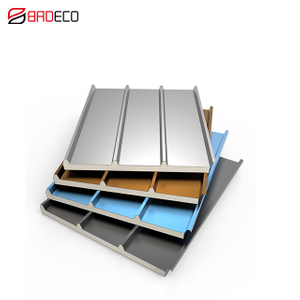

EPS Sandwich Wall Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density EPS foam. Thanks to their properties the panels may be applied in object that require very high fire resistance, EPS sandwich panel is the most effective acoustic materials used on construction.
Take the 50mm thick EPS sandwich wall panel for example and the panel can absorb the sound over 30 db/m2.Widely used in the steel structure factory building, activities room, roof, wall, air clean room ceiling and partition.
SPECIFICATIONS
Panel Thickness | 50mm, 75mm, 100mm |
Type of Base steel sheet | Hot-dip galvanized, Al-Zn coated |
Core Material Density | 10-25[kg/m³] |
Type of sheet Coating | PVDF, PE |
Thickness of steel sheet | 0.4-0.8mm |
Standard Length | Less than 11.8m, as customzied |
Cover width | 950mm and 1150mm |
Thermal conductivity | 0.032 w/(m.k) |
EPS Sandwich Wall Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density EPS foam. Thanks to their properties the panels may be applied in object that require very high fire resistance, EPS sandwich panel is the most effective acoustic materials used on construction.
Take the 50mm thick EPS sandwich wall panel for example and the panel can absorb the sound over 30 db/m2.Widely used in the steel structure factory building, activities room, roof, wall, air clean room ceiling and partition.
SPECIFICATIONS
Panel Thickness | 50mm, 75mm, 100mm |
Type of Base steel sheet | Hot-dip galvanized, Al-Zn coated |
Core Material Density | 10-25[kg/m³] |
Type of sheet Coating | PVDF, PE |
Thickness of steel sheet | 0.4-0.8mm |
Standard Length | Less than 11.8m, as customzied |
Cover width | 950mm and 1150mm |
Thermal conductivity | 0.032 w/(m.k) |
EPS Sandwich Wall Panel are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure buildings.
★Steel frame structure buildings
★Store houses and logistic centres
★Commercial buildings and offices
★Food industry facilities
★Agricultural objects
★Logistics centers
INSTALLATION VIDEO
1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.
2, Before the installation of EPS sandwich wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.
3, It should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and roof frame beam connection with self tapping screw fixation.
4, EPS sandwich wall panel links with ground.
EPS Sandwich Wall Panel are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure buildings.
★Steel frame structure buildings
★Store houses and logistic centres
★Commercial buildings and offices
★Food industry facilities
★Agricultural objects
★Logistics centers
INSTALLATION VIDEO
1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.
2, Before the installation of EPS sandwich wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.
3, It should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and roof frame beam connection with self tapping screw fixation.
4, EPS sandwich wall panel links with ground.
