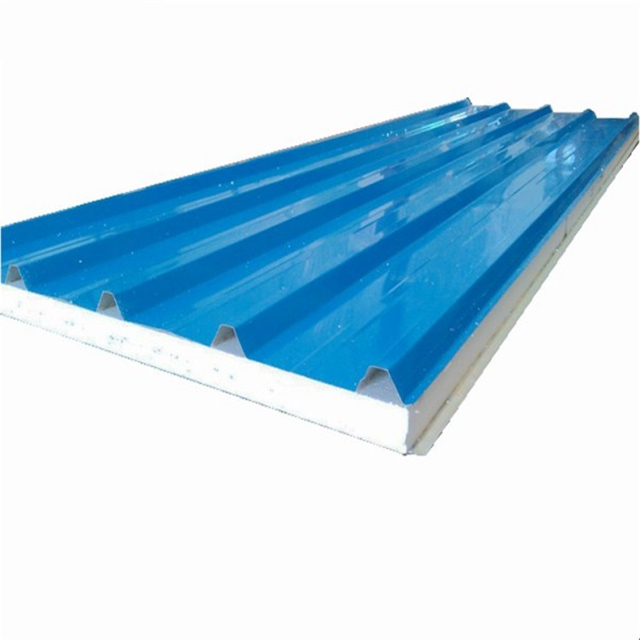

75mm EPS Sandwich Roof Panel

For the structure of this product, it is consist of there parts. The two are steel plate, the other one is polystyrene. It has excellent ability to remove dirt, so it can keep its clean and smooth. For the advantage of this product. It has good ability to resist earthquake, windstorm, insect, and also fireproof, anticorrosion, heat insulation, sound insulation. Beside these, it can be used recycled,
Color:
Availability:
Quantity:

The popular color as bellow for basic choice, or any other required on RAL Color

FLAME RED
G7016

GENTIAN BLUE
G5010

SILVER
G9006

WHITE GREY
G9002

PURE WHITE
G9010



LIGHT IVORY
G1015

TRAFFIC WHITE
G9016

YELLOW GREEN
G6018

SLIVER GREY
G7016




EPS = Good Heat Insulation

EPS Sandwich Roof Panel with EPS foam cores meet the strictest heat insulation requirements, while also complying with the required insulation properties and maintaining a good bearing capacity.


▲EPS insulation core

▲Sound Insulation

▲Vertical or horizontal installation

▲Standard lengths are from 2 m to 10 m (max. 12 m)

▲Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm



eps sandwich panel

EPS Sandwich Roof Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density EPS foam. Thanks to their properties the panels may be applied in object that require very high fire resistance, EPS sandwich panel is the most effective acoustic materials used on construction.


Take the 50 mm thick EPS sandwich roof panel for example and the panel can absorb the sound over 30 db/m2.Widely used in the steel structure factory building, activities room, roof, wall, air clean room ceiling and partition.


SPECIFICATIONS


EPS-Sandwich-Roof-Panel-BRD (3).jpg

Panel Thickness

50mm, 75mm, 100mm

Type of Base steel sheet

Hot-dip galvanized, Al-Zn coated

Core Material Density

10-25[kg/m³]

Type of sheet Coating

PVDF, PE

Thickness of steel sheet

0.4-0.8mm

Standard Length

Less than 11.8m, as customzied

Cover width

980mm,1150mm

Thermal conductivity

0.032 w/(m.k)


eps sandwich roof panel


EPS Sandwich Roof Panel are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure buildings.


★Steel frame structure buildings

★Store houses and logistic centres

★Commercial buildings and offices

★Food industry facilities

★Agricultural objects

★Logistics centers


INSTALLATION VIDEO




1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.

2, Before the installation of EPS sandwich roof panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.

3, It should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and roof frame beam connection with self tapping screw fixation.

4, EPS sandwich roof panel links with ground.
